J-Ball valve (Stainless Steel)

J-Ball Valve

Oil free valve which is designed for clean environment such as semiconductor, LCD, analytical, environment, substitute energy industries





JBALL

BALL















Features

■ Oil free

■ 2 direction valve straight/angle

■ 3 direction valve flow channel switch

■ Low control torque

■ Compact

■ Maximum pressure allowance 10MPa



Shape

BALL1



2 direction valve
Straight type

Connection:Rc1/8~Rc1/2





BALL2

2 direction valve
Angle type

Connection:Rc1/8~Rc1/2











BALL3

3 direction valve
Flow channel switching type

Connection:Rc1/8~Rc1/2

Both end J-Lok connection is also available





Click here for catalog download

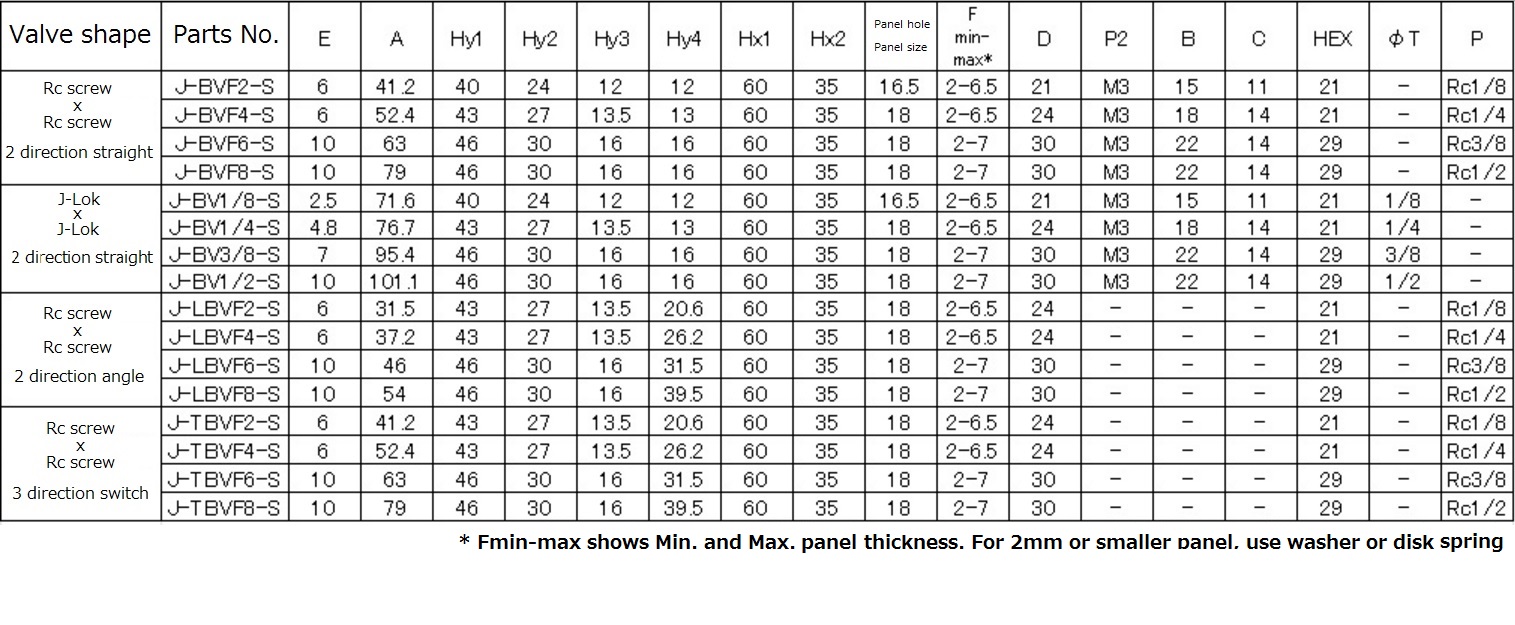

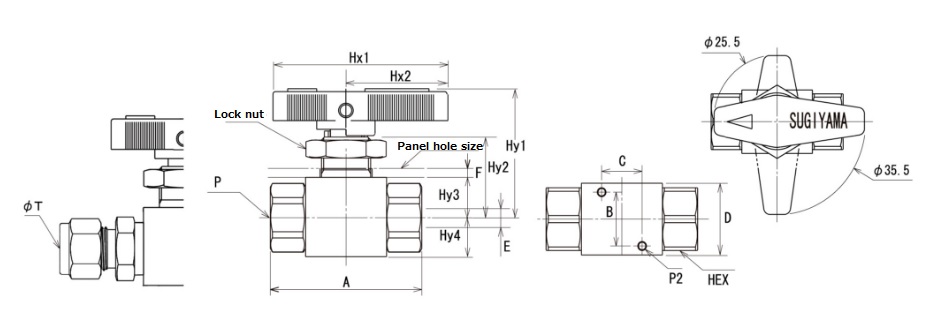

Size table

ボールバルブ

ボールバルブサイズ表

(The table expands by click)
